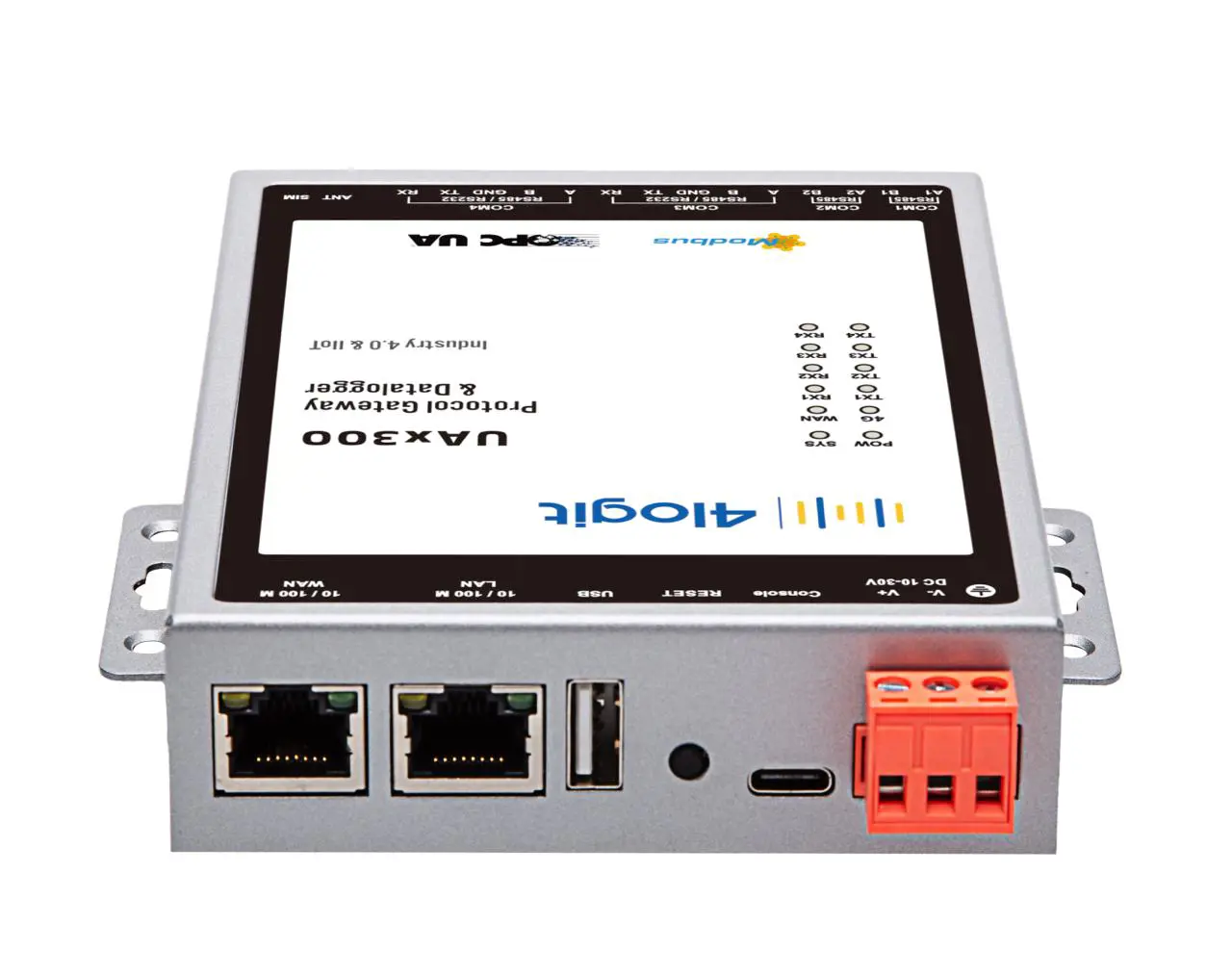

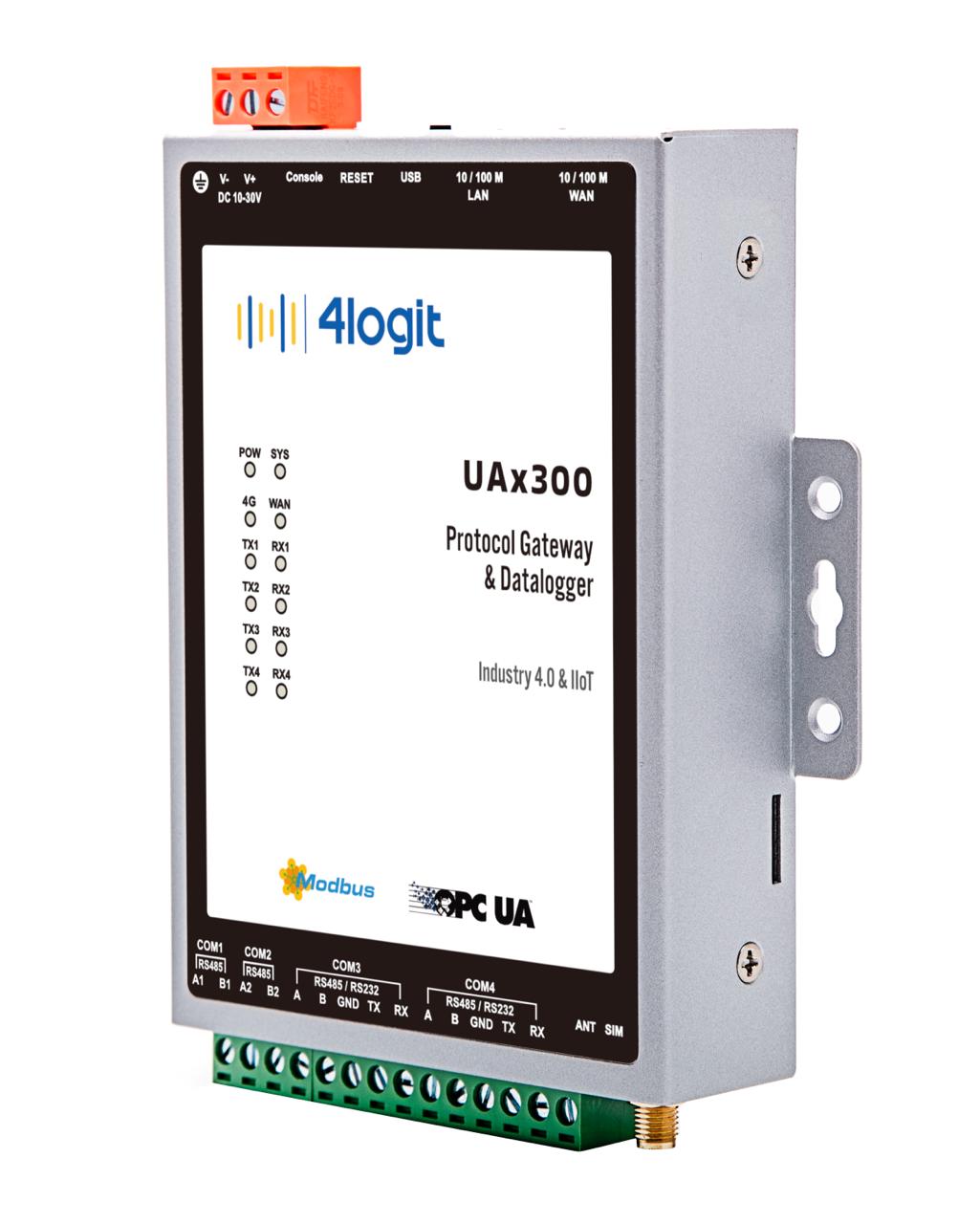

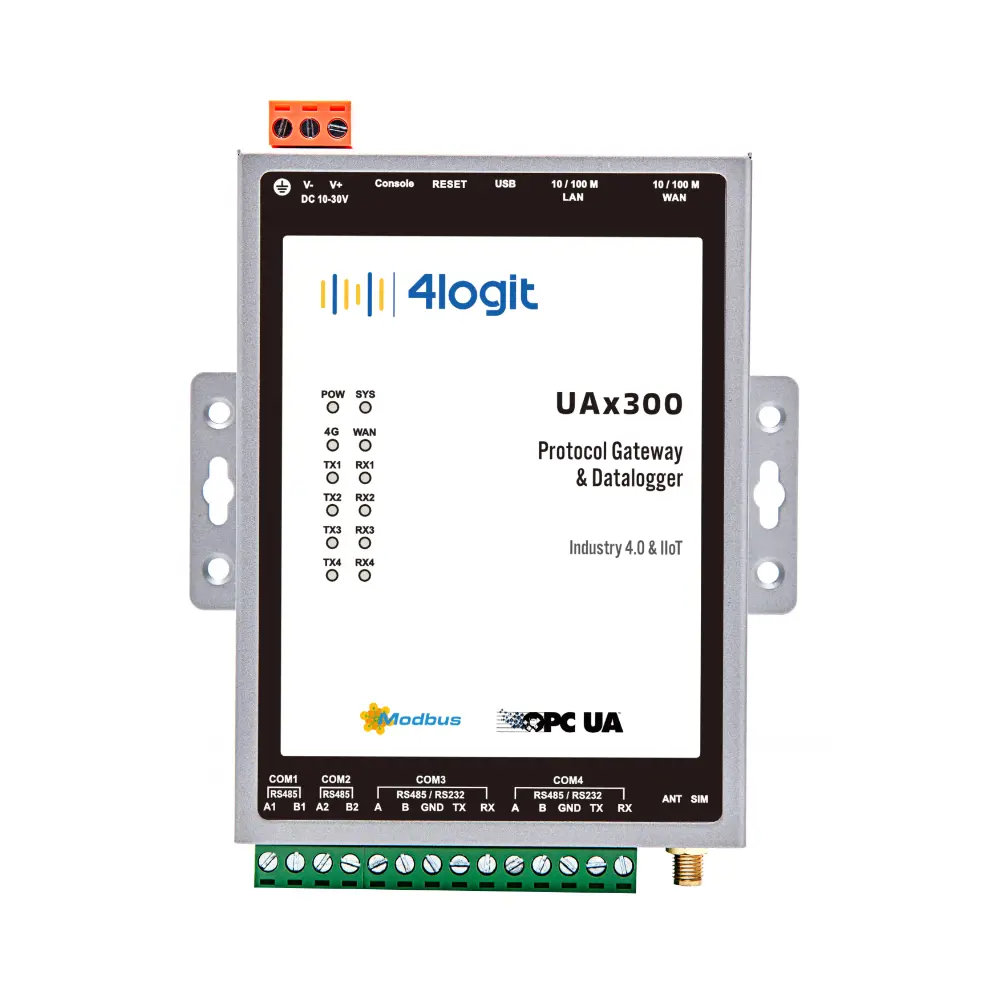

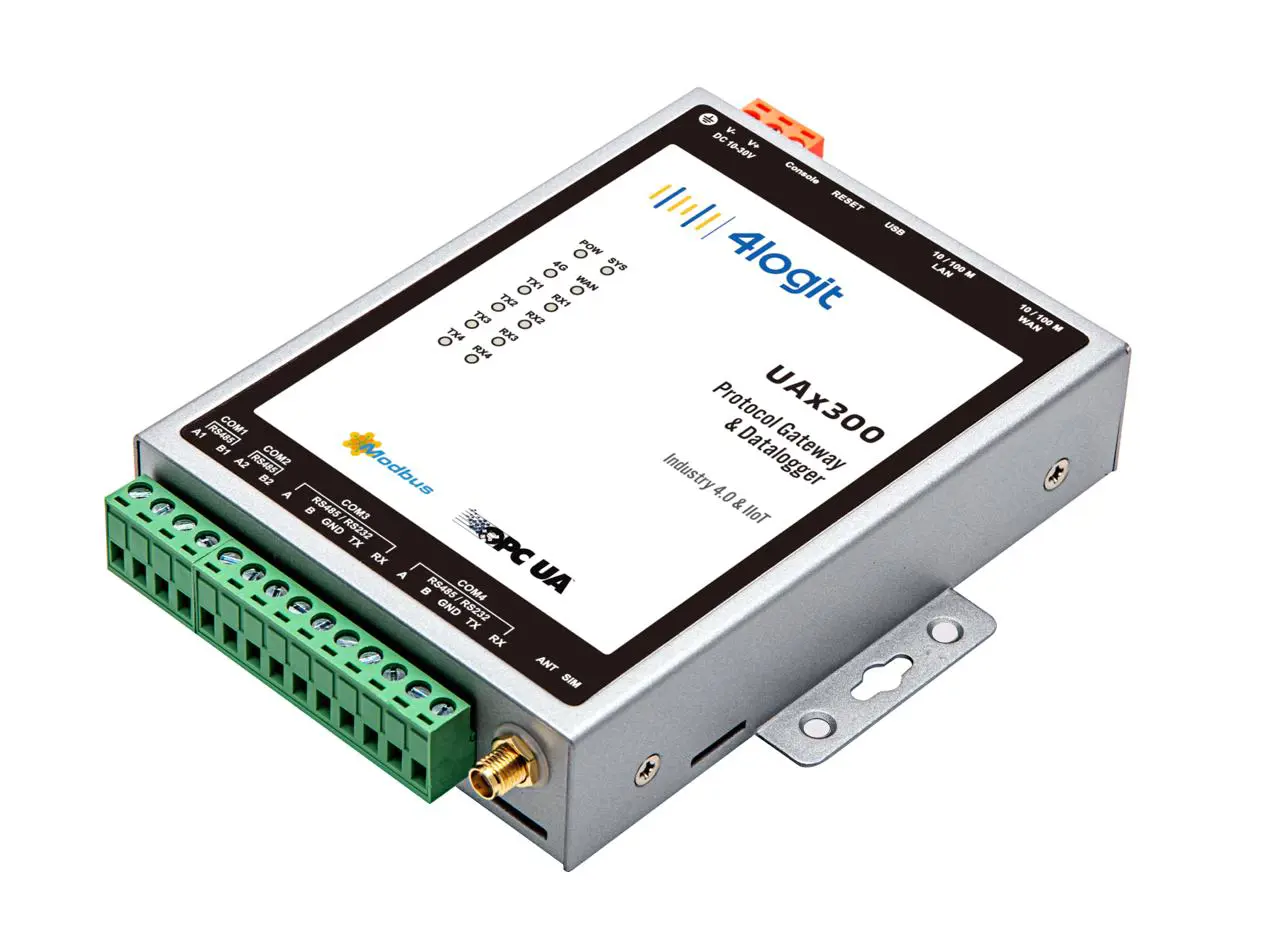

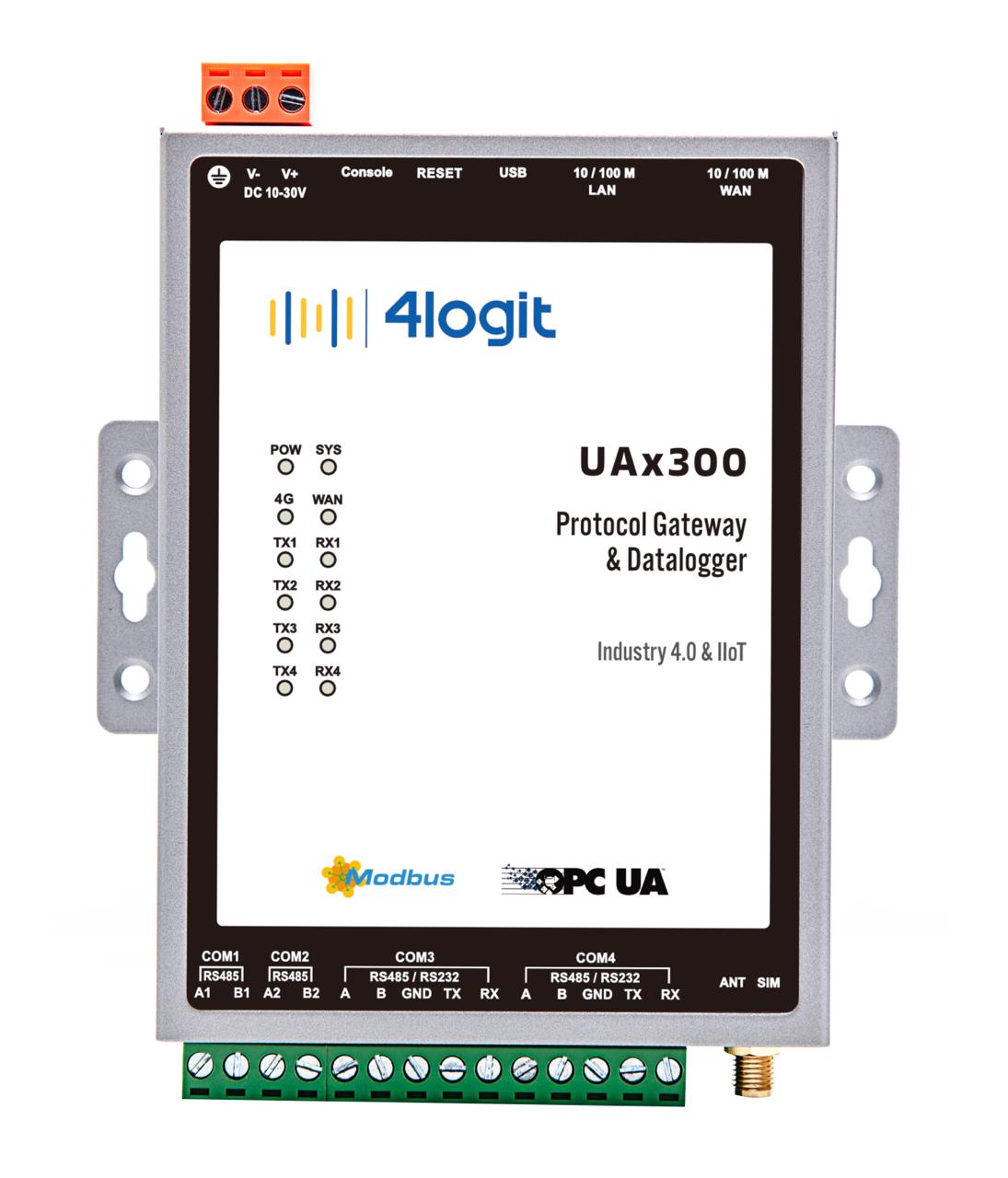

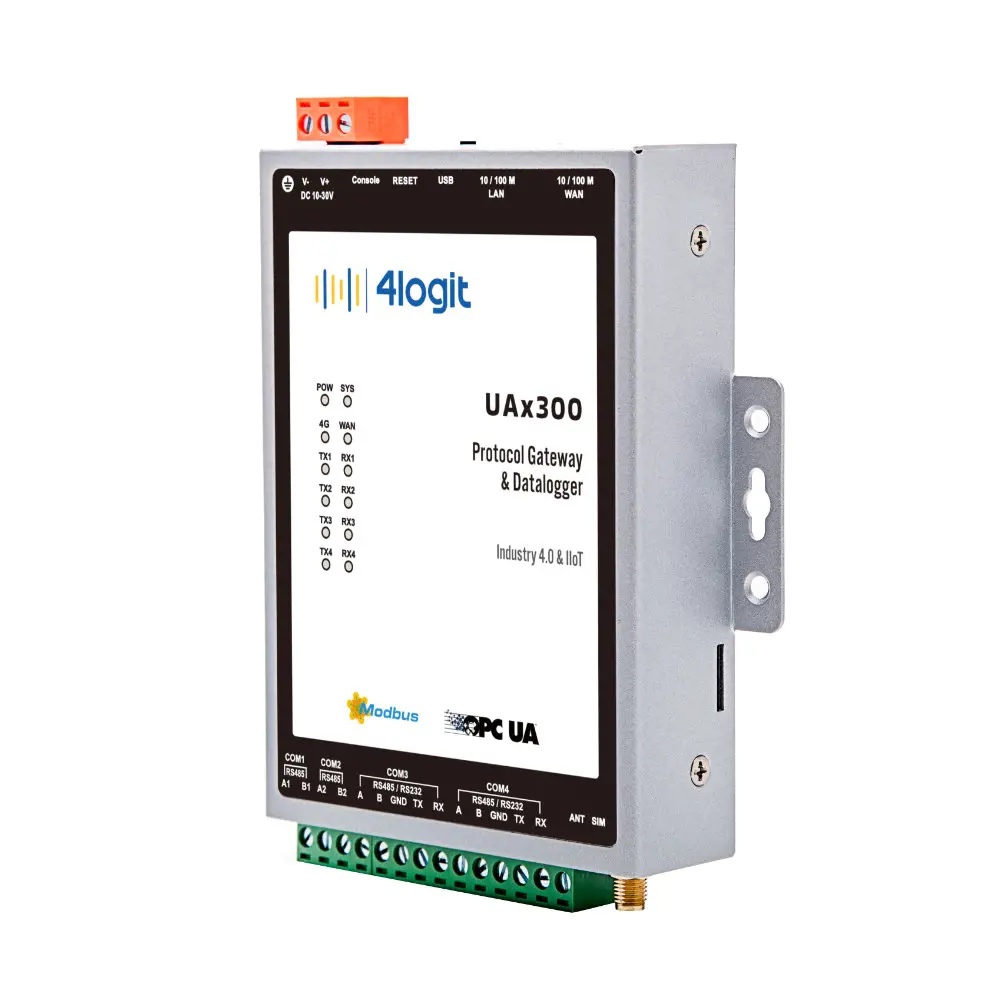

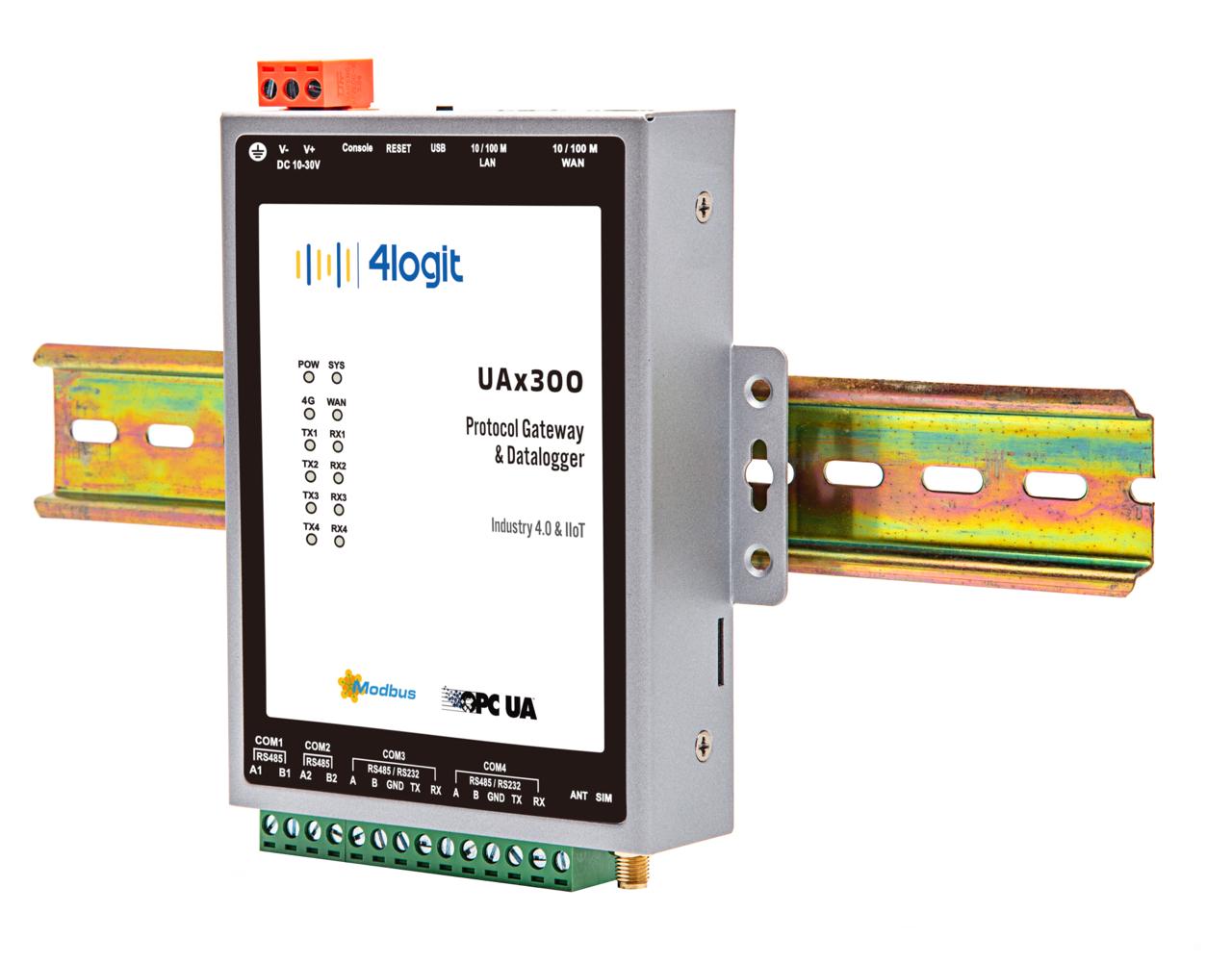

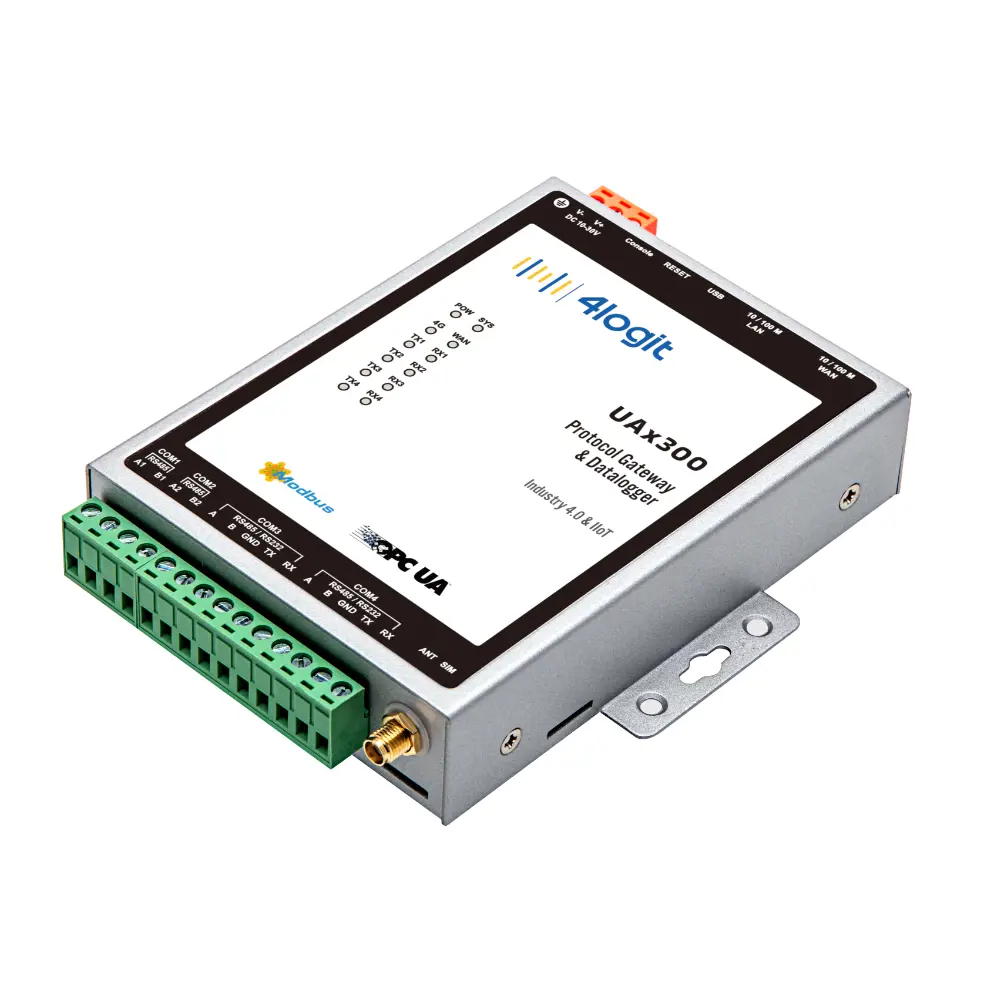

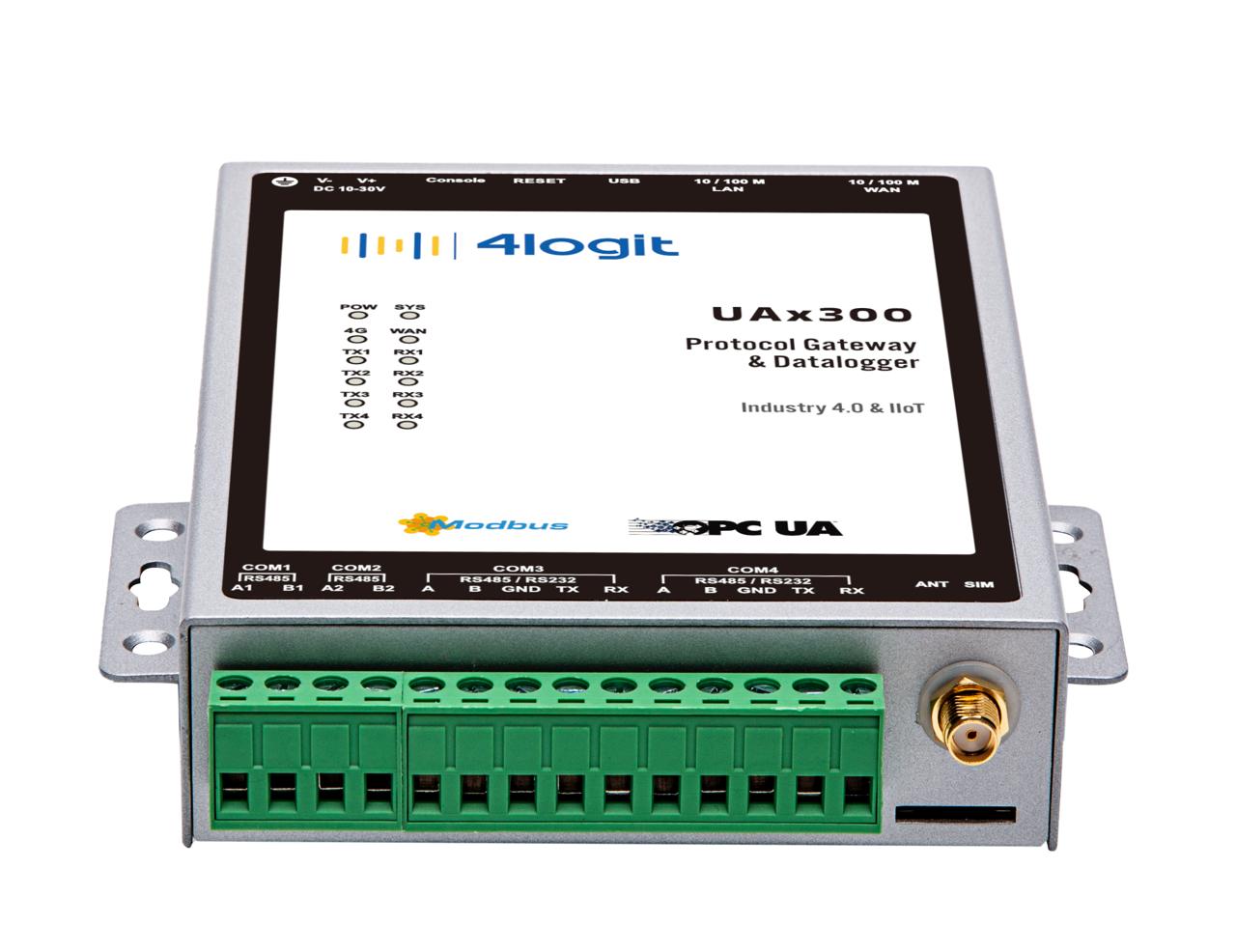

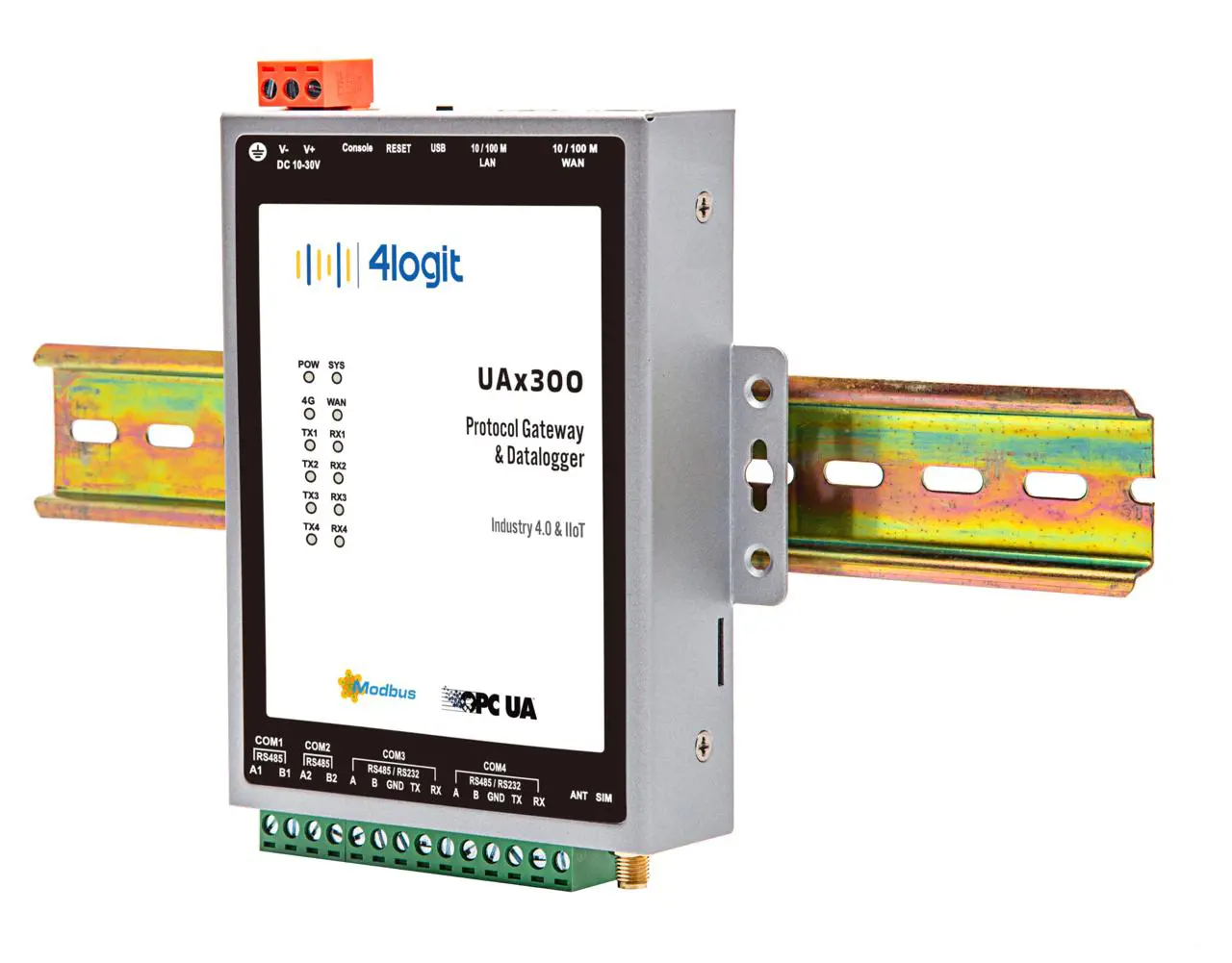

UAx300 Protocol Gateway

UAx300 Multi Protocol Gateway

UAx300 is multiprotocol gateway and the developed for IoT, IIoT and Industry 4.0 applications. It is powerfull to be gateway between Serial, Ethernet port and GSM ports. Serial ports are isolated and can work industrial applications. Configuration can done easy from anywhere thanks to web browser support. UAx300 developed to be gateway from Modbus RTU slaves, Modbus TCP/IP servers, ASCII, Siemens S7 PLC, Mitsubishi PLC servers to Modbus TCP/IP Server, OPC UA Server, MQTT Client and BACnet Server protocols.

In Short, UAx300 is Protocol Gateway or Converter for following Applications :





Modbus OPC UA Gateway

Modbus BacNet Gateway

Modbus MQTT Gateway

Modbus RTU (with 4 Rs485 ports) to Modbus TCP/IP Server

ASCII OPC UA Gateway



Data Acquisition / Reading :
Modbus RTU Modbus RTU is working on Rs485 and Rs232 ports of UAx300 Gateway. Unit can collect data from Modbus RTU devices as Modbus RTU Master.
Modbus TCP/IP Modbus TCP/IP is working on only one Ethernet port of UAx300 Gateway. Unit can collect data from Modbus TCP/IP Server devices as Modbus TCP/IP Client. There is a limit which it is 5 Server to collect data from. UAx300 can collect data from max 5 IP address for Modbus TCP/IP.
Siemens S7 Siemens S7 is working on only one Ethernet port of UAx300 Gateway. Unit can collect data from Siemens S7-1200 PLC devices . This is developed but still under tests. please check release date.
Mitsubishi Mitsubishi protocols is working on only one Ethernet port of UAx300 Gateway. Unit can collect data from Mitsubishi PLC devices . This is developed but still under tests. please check release date.



Data Delivery / Conversion
OPC UA Server OPC UA Server is supporting well in UAx300 for collected many data. HA, Histroical Access is supporting for OPC UA. You can use UAx300 as a datalogger thanks to buffer memory against data loss problems.
BACnet Server BacNet Server is supporting well in UAx300 for collected many data.
MQTT Client MQTT Client is supporting well in UAx300 for collected many data. MQTT function can be use as with or without TLS certificate.
Modbus TCP/IP Server Modbus TCP/IP Server is supporting well in UAx300 for collected data which comes only from Rs485 ports as Modbus RTU. You can use UAx300 gateway as Rs485 Modbus RTU to Modbus TCP/IP gateway. There are 4 isolated Rs485 ports to collect Modbus RTU channels to convert into one Ethernet port as Modbus TCP/IP Server.

Possibilities for Conversion ;



Modbus RTU to Modbus TCP/IP

• There are 4 Rs485 ports for Modbus RTU connections. Ports are Master.
• There is one Ethernet port to take data Modbus TCP/IP. It is Modbus TCP/IP Server



Modbus RTU and Modbus TCP/IP to OPC UA

• There are 4 Rs485 ports for Modbus RTU connections. Ports are Master.
• one Ethernet port can be Modbus TCP/IP Client to collect Modbus TCP channels (max 5 IP address)
• The data comes from Rs485 and Ethernet as Modbus has delivering as OPC UA Server
• OPC UA Server supporting HA, Historical Access
• OPC UA Server can work both Ethernet port and GSM network



Modbus RTU and Modbus TCP/IP to BACNet

• There are 4 Rs485 ports for Modbus RTU connections. Ports are Master.
• one Ethernet port can be Modbus TCP/IP Client to collect Modbus TCP channels (max 5 IP address)
• The data comes from Rs485 and Ethernet as Modbus has delivering as BACnet Server



Modbus RTU and Modbus TCP/IP to MQTT Client

• There are 4 Rs485 ports for Modbus RTU connections. Ports are Master.
• one Ethernet port can be Modbus TCP/IP Client to collect Modbus TCP channels (max 5 IP address)
• The data comes from Rs485 and Ethernet as Modbus has delivering as MQTT Client



ASCII to OPC UA

• There are 4 Rs485 ports for ASCII connections. Ports are Master.
• one Ethernet port can be ASCII Client to collect ASCII TCP channels (max 5 IP address)
• The data comes from Rs485 and Ethernet as ASCII has delivering as OPC UA Server
• OPC UA Server can work both Ethernet port and GSM network

UAx300 Multi Protocol Gateway

Technical Specifications

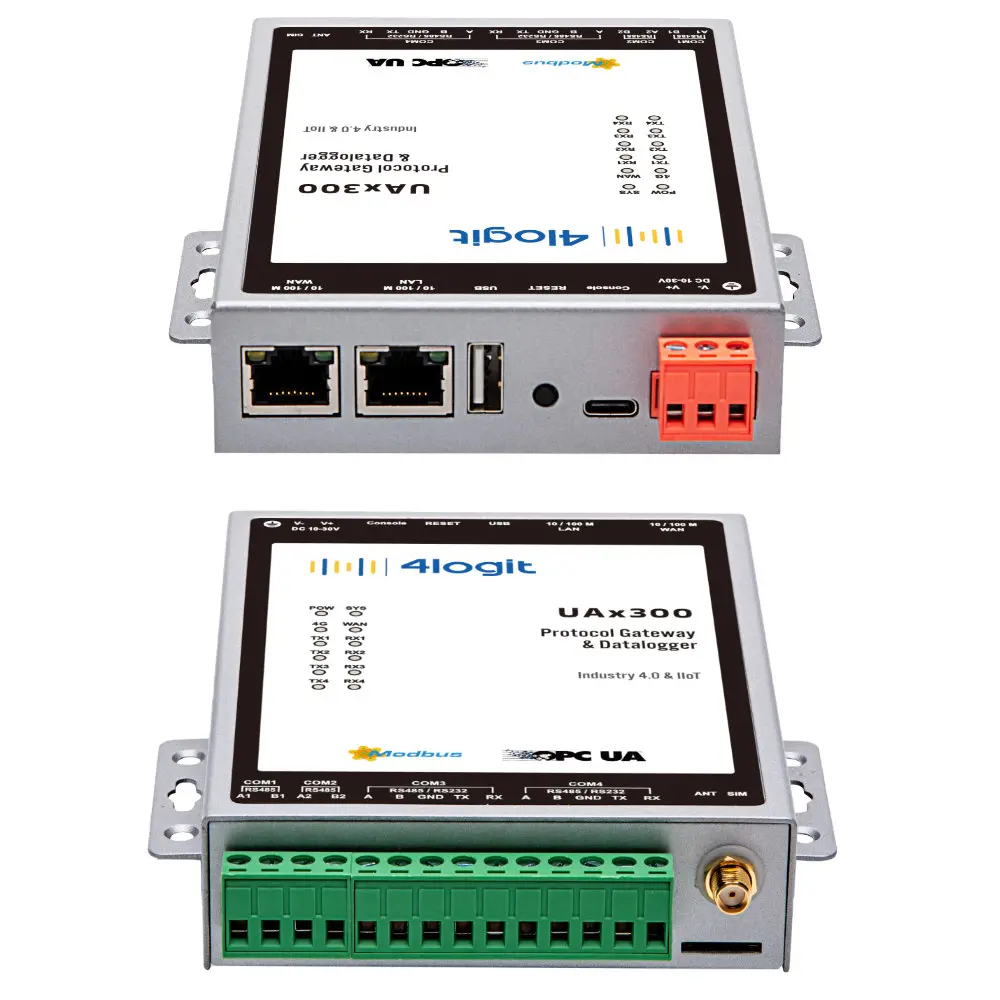

Serial Ports	2 x Rs485/Rs232 isolated 2 x Rs485 isolated (totally 4 x Rs485 ports)
Ethernet Ports	2 x Ethernet

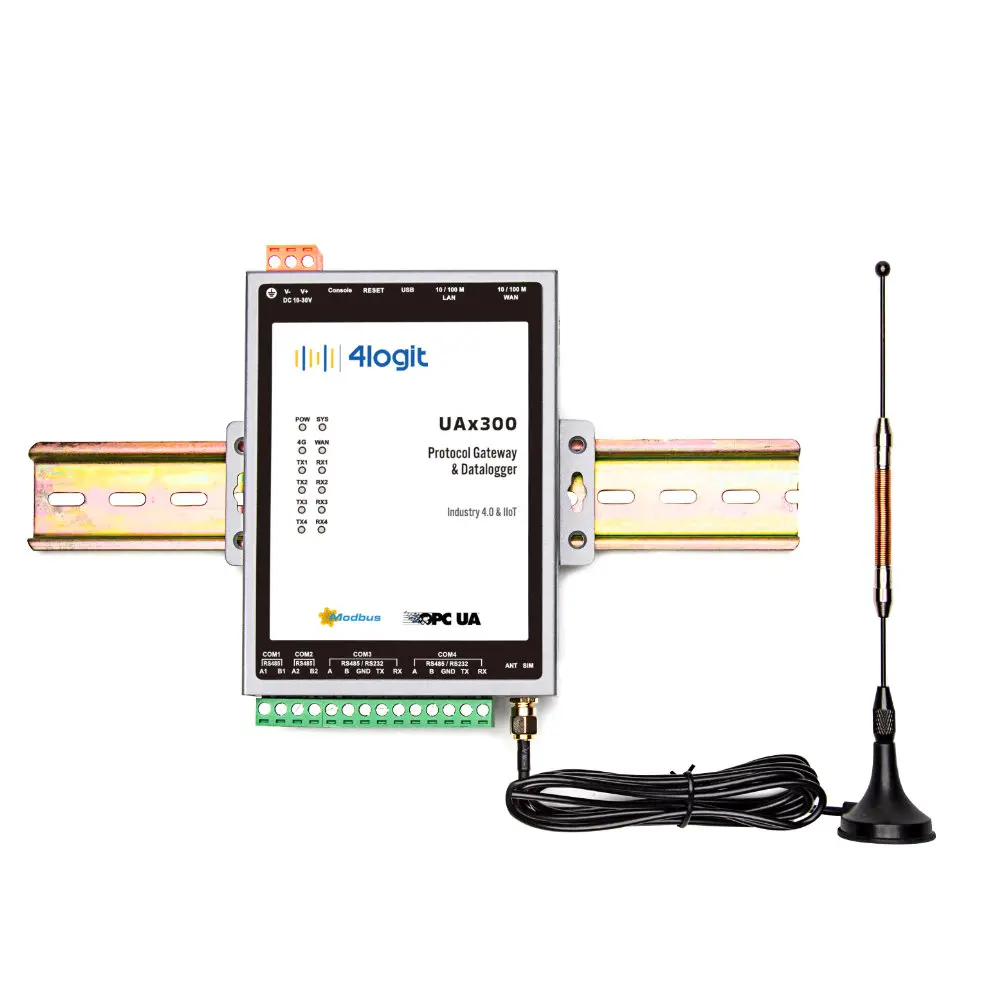

GSM Port	4G LTE GSM
Power Supply	10-30 Vdc (Working mode max 7W, peak max 10W)

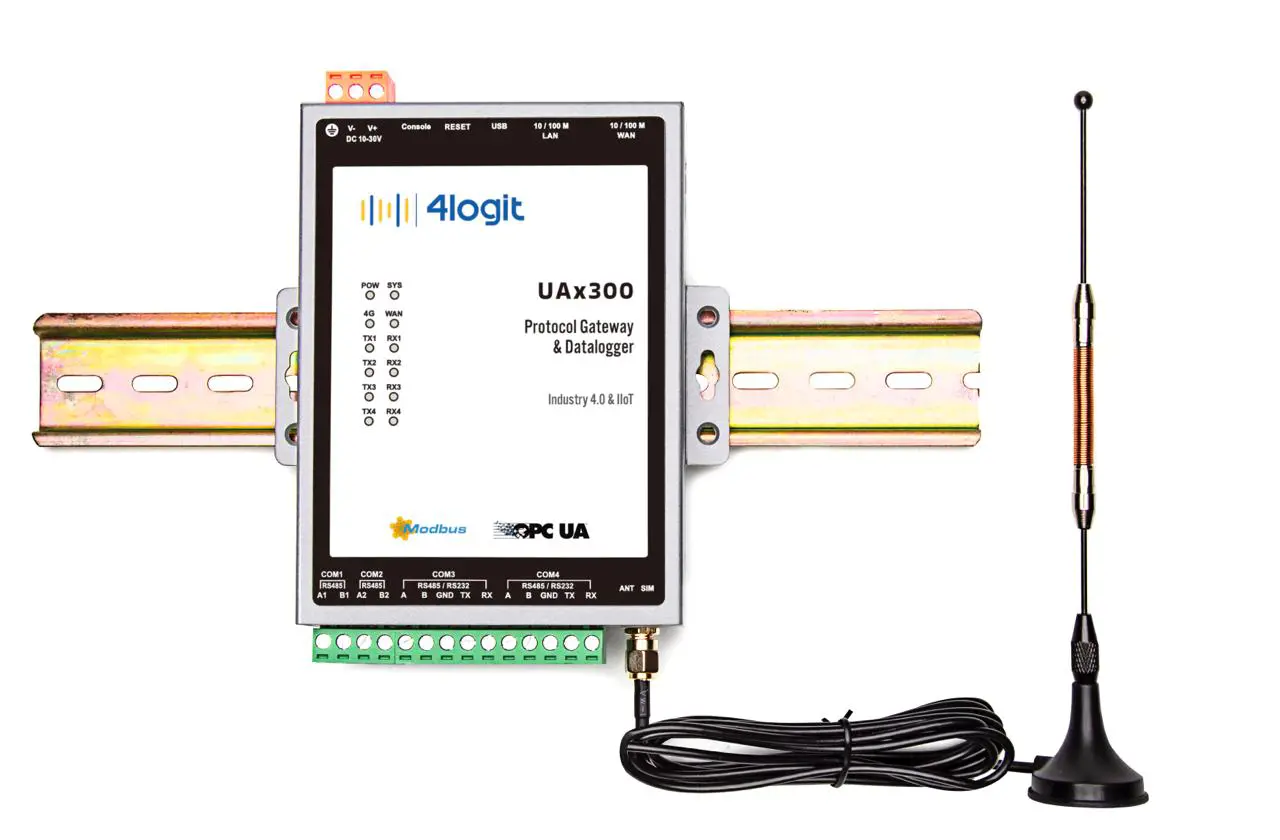

Mounting	Wall and DinRail
Dimensions	129x117x28 mm
Working Temperature	-35 to +70 ºC
